冷庫壓縮機

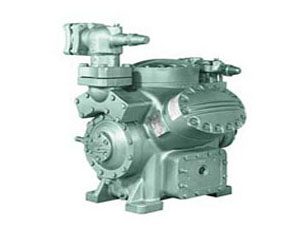

06E系列R22 R404A高溫半封閉活塞壓縮機

發布時間：2022-02-10人氣：66

R22
型號	冷凝溫度	Q:冷量	蒸發溫度
型號	冷凝溫度	P:功率	-17.5	-15	-10	-5	0	5	10	12.5
06EA250	30	Q	28.19	31.72	39.75	49.17	60.16	72.85	87.40	95.43
	30	P	10.11	10.49	11.14	11.63	11.90	11.89	11.56	11.26
	35	Q	26.03	29.37	36.93	45.84	56.23	68.25	82.07	89.69
	35	P	11.06	11.05	11.88	12.56	13.40	13.28	13.21	13.05
	40	Q	24.00	27.14	34.26	42.65	52.46	63.83	76.92	84.16
	40	P	11.01	11.54	12.53	13.40	14.10	14.57	14.76	14.74
	45	Q	22.03	24.98	31.68	39.57	48.80	59.53	71.90	78.76 <, /SPAN>
	45	P	11.37	11.97	13.12	14.17	15.07	15.77	16.22	16.34
	50	Q	20.07	22.83	29.11	36.51	45.19	55.28	66.96	73.43
	50	P	11.69	12.36	13.66	14.89	15.99	16.92	17.62	17.87
	55	Q					41.56	51.04	62.03	68.13
	55	P					16.88	18.02	18.96	19.34
06EA265	30	Q	35.17	39.88	50.72	63.66	78.93	96.78	117.43	128.89
	30	P	12.71	13.31	14.38	15.18	15.65	15.70	15.27	14.84
	35	Q	32.34	36.76	46.95	59.14	73.56	90.44	110.04	120.92
	35	P	13.23	13.95	15.27	16.38	17.18	17.62	17.61	17.41
	40	Q	29.62	33.76	43.32	54.76	68.34	84.28	102.82	113.50
	40	P	13.68	14.50	16.08	17.47	18.60	19.40	19.80	19.82
	45	Q	27.01	30.88	39.81	50.53	63.27	78.28	95.79	105.55
	45	P	14.03	14.97	16.77	18.44	19.89	21.05	21.83	22.07
	50	Q	24.50	28.10	36.42	46.42	58.35	72.43	88.92	98.13
	50	P	14.30	15.33	17.36	19.29	21.04	22.54	23.71	24.15
	55	Q					53.56	66.74	82.21	90.88
	55	P					22.06	23.89	25.43	26.07
06EA275	30	Q	39.18	44.34 &, lt;, o:p>	55.91	69.31	84.73	102.34	122.32	133.26
	30	P	14.65	15.34	16.53	17.40	17.90	17.96	17.54	17.12
	35	Q	36.01	40.98	52.11	65.01	79.86	96.83	116.12	126.68
	35	P	15.14	15.98	17.49	18.71	19.58	20.04	20.03	19.84
	40	Q	32.81	37.57	48.25	60.63	74.90	91.22	109.79	119.97
	40	P	15.47	16.47	18.31	19.88	21.12	21.98	22.40	22.42
	45	Q	29.57	34.12	44.34	56.19	69.86	85.52	103.36	113.15
	45	P	15.62	16.78	18.95	20.88	22.5	23.76	24.6	24.85
	50	Q	26.32	30.66	40.4	51.71	64.76	79.74	96.84	106.24
	50	P	15.58	16.9	19.41	21.7	23.71	25.37	26.64	27.11
	55	Q					59.63	73.92	90.26	99.25
	55	P					24.72	26.8	28.5	29.2
06EA299	30	Q	52.59	59.02	73.66	90.94	111.14	134.53	161.41	176.24
	30	P	20.11	21.08	22.87	24.37	25.49	26.1	26.12	25.88
	35	Q	49.11	55.2	69.1	85.52	104.73	127.03	152.7	166.88
	35	P	20.84	21.95	24.08	25.97	27.54	28.67	29.26	29.33
	40	Q	45.7	51.47	64.62	80.18	98.42	119.62	144.08	157.61
	40	P	21.45	22.7	25.14	27.41	29.41	31.03	32.18	32.54
	45	Q	42.37	47.81	60.22	74.92	92.19	112.3	135.55	148.44
	45	P	21.96	23.34	26.07	28.69	31.1	33.19	34.87	35.53
	50	Q	31.92	44.23	55.9	69.74	86.04	105.07	127.11	139.25
	50	P	22.37	23.86	26.86	29.81	32.61	35.16	37.85	38.28
	55	Q					79.97	97.92	118.76	130.36
	55	P					33.96	36.94	39.62	40.82

R404A

型號	冷凝溫度	Q:冷量	蒸發溫度
型號	冷凝溫度	P:功率	-17.5	-15	-10	-5	0	5	10
06EA550	30	Q	31.50	35.52	44.68	55.49	68.16	82.89	99.87
	30	P	12.28	12.71	13.43	13.94	14.17	14.08	13.62
	35	Q	28.50	32.24	40.78	50.86	62.70	76.49	92.43
	35	P	12.93	13.45	14.38	15.11	15.60	15.80	15.64
	40	Q	25.75	29.21	37.10	46.43	57.41	70.25	85.13
	40	P	13.50	14.12	15.25	16.21	16.95	17.42	17.58
	45	Q	23.05	26.22	33.44	42.01	52.12	63.97	77.77
	45	P	14.01	14.71	16.04	17.23	18.22	18.97	19.43
	50	Q	20.22	23.08	29.61	37.39	46.60	57.46	70.16
	50	P	14.46	15.25	16.78	18.19	19.43	20.46	21.21
	54	Q	17.42	20.33	26.30	33.42	41.91	51.96	63.76
	54	P	14.83	15.65	17.34	18.93	20.37	21.61	22.60
06EA565	30	Q	39.80	45.22	57.29	71.20	87.17	105.40	126.12
	30	P	14.25	15.08	16.59	17.86	18.81	19.39	19.51
	35	Q	35.78	40.93	52.37	65.50	80.55	97.74	117.28
	35	P	14.69	15.86	17.51	19.11	20.40	21.33	21.82
	40	Q	31.75	36.61	47.36	59.67	73.77	89.86	108.17
	40	P	14.88	16.02	18.20	20.14	21.80	23.09	23.96
	45	Q	27.66	32.20	42.23	53.68	66.78	81.74	98.78
	45	P	14.77	16.09	18.62	20.93	22.96	24.64	25.91
	50	Q	23.48	27.70	36.96	47.51	59.56	73.35	89.08
	50	P	14.35	15.85	18.75	21.45	23.87	25.96	27.64
	54	Q	19.68	24.00	32.61	42.41	53.61	66.42	81.07
	54	P	13.69	15.42	18.63	21.65	24.40	26.82	28.85
06EA575	30	Q	46.18	52.17	65.80	81.88	100.73	122.66	147.99
	30	P	16.21	17.14	18.91	20.48	21.78	22.75	23.30
	35	Q	42.04	47.63	60.29	75.21	92.70	113.07	136.63
	35	P	16.84	17.90	19.97	21.88	23.57	24.96	25.99
	40	Q	38.00	43.17	54.86	68.60	84.71	103.50	125.28
	40	P	17.28	18.46	20.80	23.03	25.08	26.89	28.37
	45	Q	34	38.75	49.44	61.99	76.71	93.9	113.89
	45	P	17.51	18.81	21.39	23.92	26.31	28.5	30.41
	50	Q	30	34.32	44	55.34	68.65	84.23	102.4
	50	P	17.53	18.93	21.74	24.54	27.25	29.8	32.11
	54	Q	26.77	30.74	39.6	49.96	62.12	76.4	93.11
	54	P	17.39	18.85	21.83	24.83	27.78	30.6	33.22
06EA599	30	Q	74.09	79.81	92.7	107.55	124.78	144.73	167.78
	30	P	23.41	24.58	26.08	26.87	27.5	28.48	30.34
	35	Q	68.69	74.23	86.5	100.63	116.99	135.94	157.83
	35	P	25.08	26.38	28.18	29.37	30.46	31.99	34.47
	40	Q	62.45	67.72	79.34	92.69	108.11	125.98	146.64
	40	P	26.48	27.97	30.21	31.92	33.61	35.82	39.06
	45	Q	55.28	60.26	71.16	83.64	98.06	114.77	134.14
	45	P	27.27	29.02	31.84	34.2	36.62	39.64	43.77
	50	Q	47.12	51.76	61.78	73.42	86.76	102.25	120.25
	50	P	27.13	29.2	32.73	35.87	39.16	43.12	48.27
	54	Q	39.82	44.16	53.6	64.35	76.77	91.23	108.08
	54	P	26.12	28.5	32.69	36.56	40.63	45.44	51.5
